Oscam iCam v9: Newnigma2 image for Dreambox One (AArch64 cpu)

Started by TechGuy, 13 April 2023, 17:09:27

Previous topic - Next topic

TechGuy

1. Introduction

2024-10-23: Updated and tested

We have prepared for you a ready-made Newnigma2 firmware with Oscam iCam v9 installed and configured for Dreambox One (AArch64 cpu)

Attention! After installing the firmware, all data on your receiver will be deleted! Including your scanned channels, etc. Therefore, before installing, we strongly recommend that you make a full backup of your receiver!

After installing the firmware, you will need to make some settings – if necessary, change the configuration of your tuner, as well as specify your data for connecting to the CS server.

If you don't have a Dreambox One receiver, please use other article!

2. Firmware installation on Dreambox One

  • Download the image from HERE
  • Power off Dreambox ONE UHD via the rocker switch on the rear panel.
  • Turn on the Dreambox ONE UHD from the switch on the back, as soon as the LED above the on / off button lights up hold down with a finger upwards and release immediately after that the IP address will appear on the TV screen.
  • Type the ip address of the Dreambox ONE UHD into a browser then press enter.
  • Click the "Firmware" upload button.
  • Click "Browse" button. Search for the downloaded image (newnigma2-dreamone-icam_v9_20241023.tar.gz file), double click on it then Press the Go! button. And wait!
  • Important: Remove check marks from Backup and Restore Settings
  • When you see the message:
  • Finished successfully. You may reboot now.
  • Click the "Click here to reboot" button

3. Setting up the receiver after flashing

3.1 Tuner Configuration

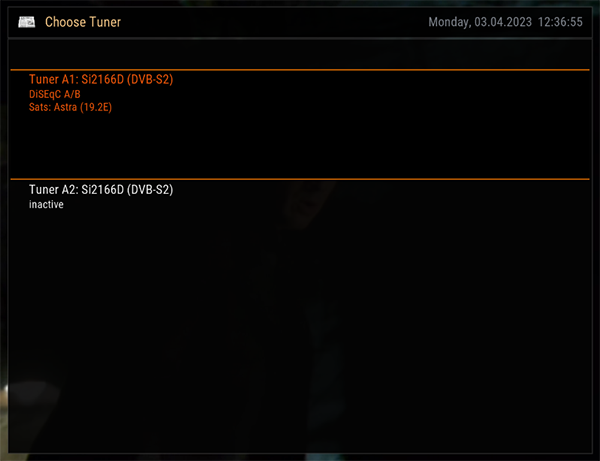

If, after flashing and turning on the receiver, the "kabel eins" channel did not work for you, then you need to change the tuner settings. To do this, go to the MENU -> Setup -> Services and Recording -> Service Searching -> Tuner Configuration section and configure your tuner.



3.2 Obtaining the IP address of the receiver

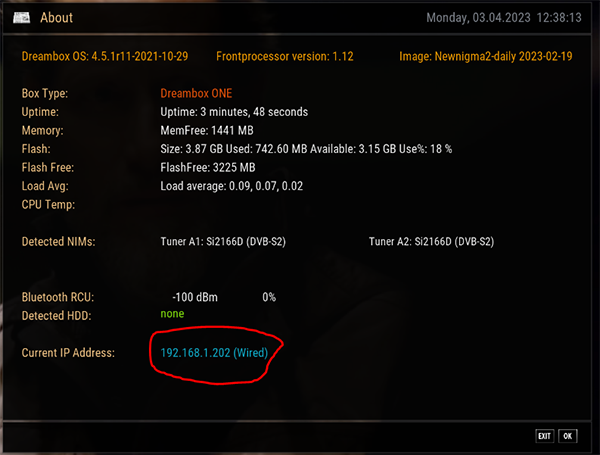

By default, the receiver should obtain a network address automatically (DHCP). To find out, you need to go to the section MENU -> Information -> About



Current IP address must be defined (In my case it is 192.168.1.202)

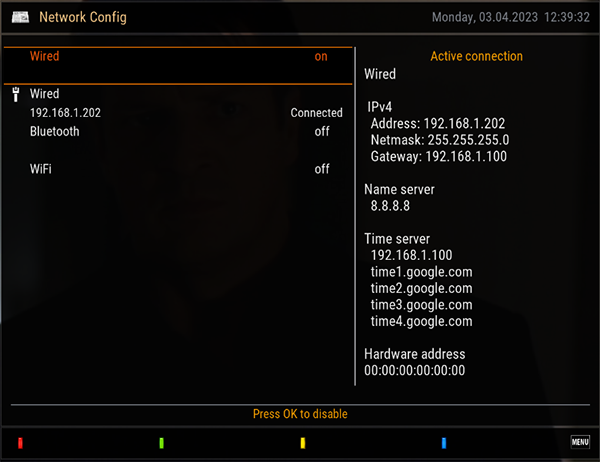

If for some reason your receiver did not receive an address automatically, then you need to set up the network manually. This can be done in the section MENU -> Setup -> Network -> Network Setup



3.3 Setting up the Oscam

You need to add your access parameters to Oscam. To do this, open the Oscam Web Interface in a browser using the IP of your receiver. Oscam Web Interface is located on port 8080. In my case it is:

http://192.168.1.202:8080/

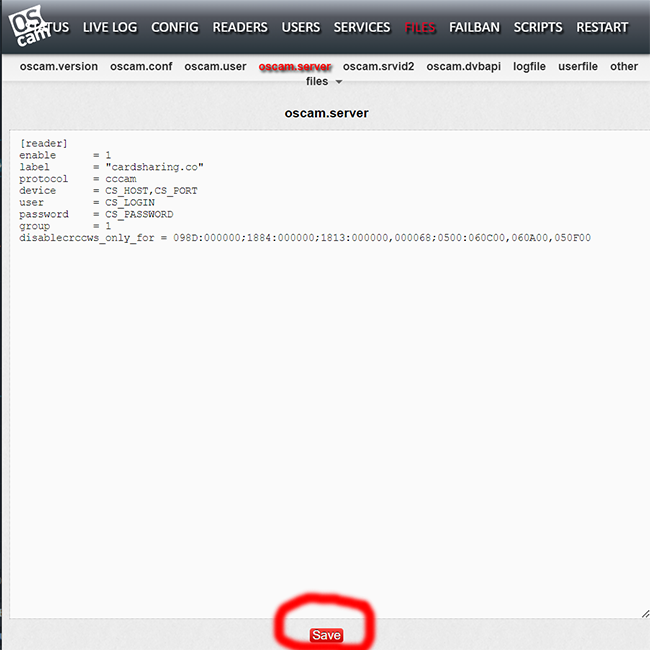

You need to go to the Files -> oscam.server section, specify your connection data taken from the billing and click the Save button.



Don't forget to click the Save button!

4. Reboot the receiver

Please reboot the receiver completely after setup. Do not turn off the receiver from the socket, but reboot it through the menu MENU -> Standby / Restart -> Restart

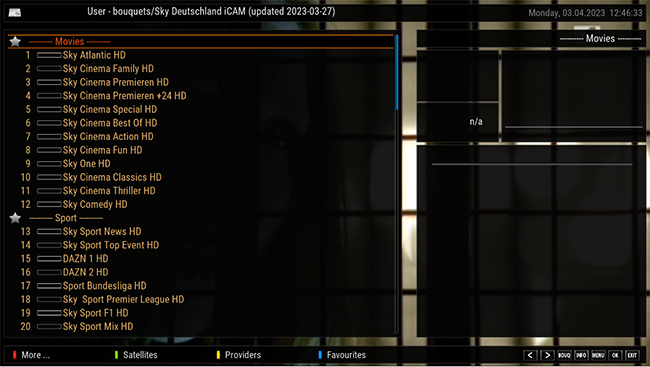

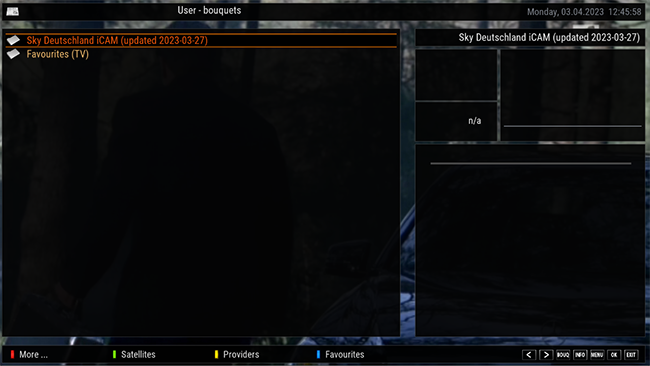

After rebooting the receiver, you can go to the Sky Deutschland iCAM bouquet and enjoy watching.



5. Choose a playlist and watch!

After rebooting the receiver, you can go to the Sky Deutschland iCAM bouquet and enjoy watching.



6. Additional Information

Installed firmware has a root password for remote access via FTP / Telnet:

Login: root
Password: icam2022

We recommend that you change the root password, and restrict or disable remote access if you do not need it.

7. Changing ROOT password

To increase the security of your receiver, we strongly recommend that you change the root password.
In order to change the root password, log in to the receiver using Telnet using the login and password specified in paragraph 6. Enter the command:

passwd root
and set your new password

Or change your password via MENU->Setup->System->Password->Enter a new password function.
