1. Introduction

We have prepared for you an universal backup (with Oscam iCam v9) for any Enigma2 receiver with OpenATV 7.2 firmware with MIPS or ARM cpu.

Attention! After using our backup, all data on your receiver will be deleted! Including your scanned channels, etc. Therefore, before installing, we strongly recommend that you make a full backup of your receiver!

After using our backup, you will need to make some settings – if necessary, change the configuration of your tuner, as well as specify your data for connecting to the CS server.

2. Restoring from an universal backup for any Enigma2 receiver with OpenATV 7.2 firmware (MIPS and ARM)
  • In order to use our backup, you need to install OpenATV 7.2 firmware on your receiver. We used OpenATV 7.0 firmware dated September 2, 2022. Download and install OpenATV 7.2 from the official site – https://www.opena.tv/downloads/. If you already have an earlier version of OpenATV, then upgrade to version 7.0 using Menu -> Setup -> Software Management -> Flash Online
  • Format your USB stick with a FAT32 file system
  • Insert the USB stick to your receiver
  • Make a backup of your receiver’s settings on a USB stick. To do this, use the function Menu -> Setup -> Software Management -> Backup System Settings. You should see a message on the screen – Backup Complete.
  • Remove the USB stick from the receiver and insert into your PC
  • Download from our site a ready-made backup:
  • Go to USB stick. You will see the backup_openatv_BOXMANE folder (e.g. backup_openatv_vuuno4k for VU+ UNO 4k). Go to this folder and replace the enigma2settingsbackup.tar.gz file with the one you downloaded from our site (delete the file from the flash drive and put the enigma2settingsbackup.tar.gz file that you downloaded from our site into this folder).
  • Insert the USB stick to your receiver
  • Go to Menu -> Setup -> Software Management -> Restore System Settings. The receiver will ask you – “Are you sure you want to restore the backup?”. Answer – YES
  • ATTENTION! After the backup is restored, the receiver will ask – “Backup plugins found. Do you want to install?”. Answer – NO. It is important!!!
  • Receiver will be restarted automatically.  Now you can remove the USB stick from the receiver.
  • Go to step 3

3. Setting up the receiver after flashing

3.1 Tuner Configuration

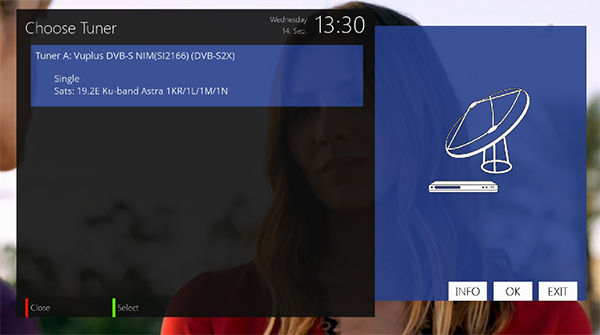

If, after flashing and turning on the receiver, the “kabel eins” channel did not work for you, then you need to change the tuner settings. To do this, go to the MENU -> Setup -> Reception -> Tuner Configuration section and configure your tuner.

3.2 Obtaining the IP address of the receiver

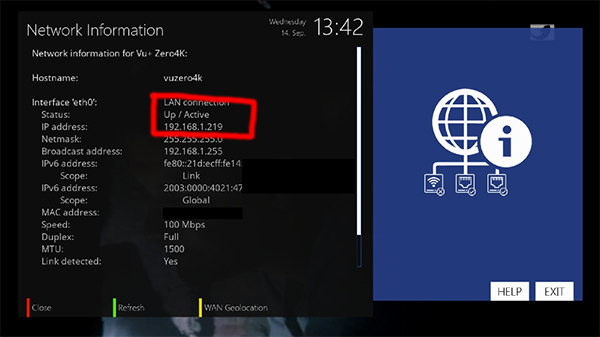

By default, the receiver should obtain a network address automatically (DHCP). To find out, you need to go to the section MENU -> Information -> Network

Connection status must be Up / Active, IP address must be defined (In my case it is

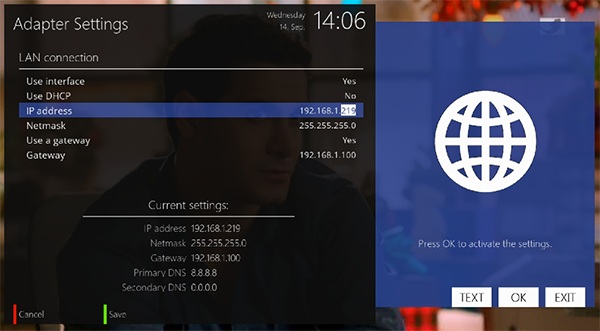

If for some reason your receiver did not receive an address automatically, then you need to set up the network manually. This can be done in the section MENU -> Setup -> System -> Network -> Device Settings -> Adapter Settings

3.3 Setting up the Oscam

You need to add your access parameters to Oscam. To do this, open the Oscam Web Interface in a browser using the IP of your receiver. Oscam Web Interface is located on port 3_03_1.png. In my case it is:

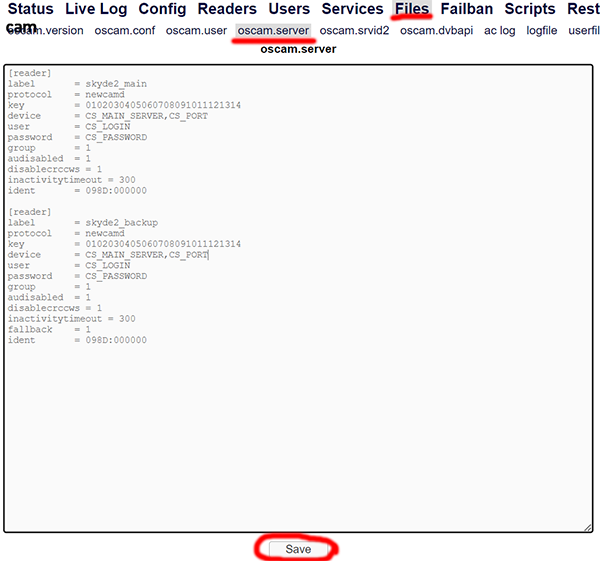

You need to go to the Files -> oscam.server section, specify your connection data taken from the billing and click the Save button.

Don’t forget to click the Save button!

4. Reboot the receiver

Please reboot the receiver completely after setup. Do not turn off the receiver from the socket, but reboot it through the menu MENU -> Standby / Restart -> Reboot

5. Choose a playlist and watch!

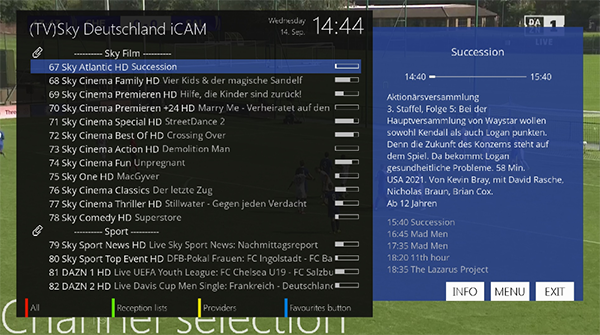

After rebooting the receiver, you can go to the Sky Deutschland iCAM bouquet and enjoy watching.

6. Additional Information

Installed firmware has a root password for remote access via SSH / Telnet:

Login: root
Password: icam2022

We recommend that you change the root password, and restrict or disable remote access if you do not need it.

7. Changing ROOT password

To increase the security of your receiver, we strongly recommend that you change the root password.
In order to change the root password, log in to the receiver using SSH or Telnet using the login and password specified in paragraph 6. Enter the command:

passwd root

and set your new password
